KS-ASS® - Turnkey
Art. No.: HTD-10000
KS-ASS® - the outstanding, fully automatic coating process for round and square manholes from DN 500 to DN 4500
Further properties
Discover the KS-ASS® manhole coating system from Hermes Technologie - for professional use.
Our solution exceeds all expectations, because it coats every manhole, regardless of its design, as well as almost every channel, with first-class ERGELIT quality mortar, and with an absolutely even spray pattern.
Compared to traditional coating methods, KS-ASS® offers you the possibility of achieving a consistent renovation result on every construction site, delivering an even spray pattern and thus ensuring the highest possible quality of your work.
25 years of experience

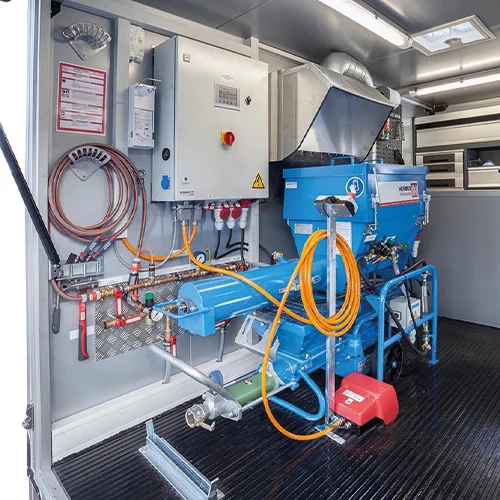

Our technology is based on more than 25 years of experience at HERMES Technologie and makes it possible, with just one person and our precisely coordinated mixer-pump-spinner motor combination, to carry out a fully automatic coating of manhole walls in any desired layer thickness using the spinning process.
A touchscreen makes your everyday life easier by automatically calculating and executing layer thicknesses and more.
Substrate preparation has never been so easy!
Use either the fully automatic TSSR® shaft cleaning unit or the HDS Jet® water-solids nozzle for cleaning particularly stubborn surfaces to create the optimum basis for coating.
Even square shafts over 25 meters deep are no problem for the KS-ASS® process.
Do you have other application requirements?
With our system, you can also manually wet-spray large surfaces in wastewater structures, pressure-grout masonry, inject any structure or coat sewers horizontally. This flexibility is second to none.

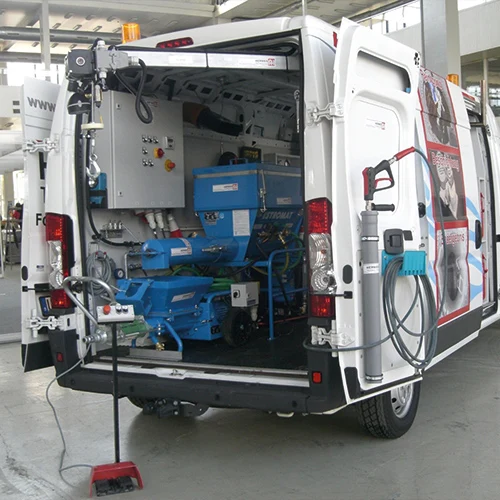

Our process equipment is available in a fully equipped, site-compatible panel van, truck or box trailer.
We also offer add-on versions for existing systems or installations in your desired vehicle.
Would you like to carry out the installation yourself?
Order our self-assembly unit - you will receive the complete equipment including support for your installation project.

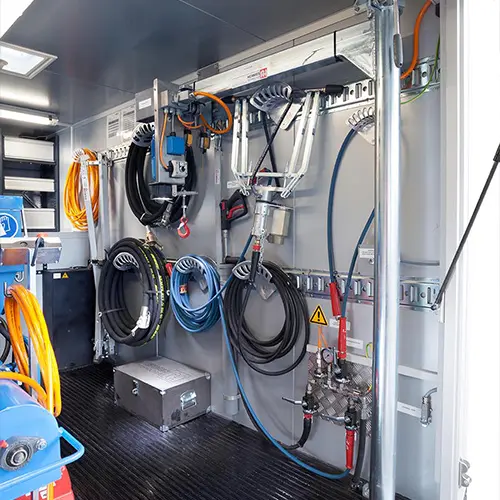

- The ergonomic and work-friendly arrangement of all devices, tools and connections in our superstructures enables the most efficient work processes based on decades of construction site experience
- The entire substrate preparation is carried out fully automatically using TSSR® (high-pressure water jetting) or HDS-Jet® (water-solid jetting)
- Both the cleaning process and the coating process are preset once via the touch panel and the automated process begins
- The coating process is carried out outside the shaft structure and is monitored and recorded with the highest level of quality control
- At least 30% higher coating quality due to the mechanical application of ERGELIT mortar
- Almost unlimited coating thicknesses possible
- Safety - no unnecessary entry into the shaft

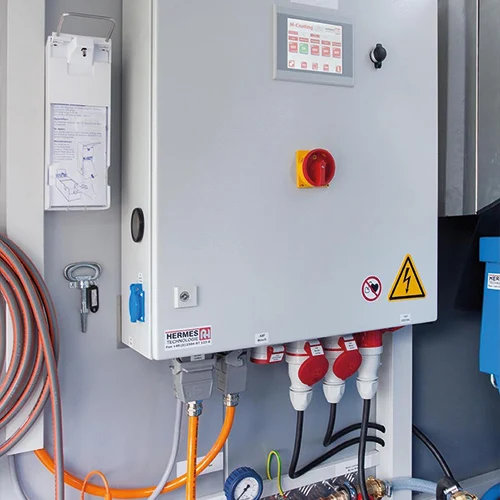

- Avoidance of error sources through automation, all electrical devices can be controlled centrally via a control cabinet
- Easy to use thanks to intuitive touchscreen in various national languages
- KS-ASS on-board computer automatically calculates layer thickness, residual mortar quantity and time required, among other things
- Even structures that cannot be reached by vehicle can still be coated from a distance
- Power generator (12 kVA) and high-pressure pump (400 bar) are installed separately in a soundproofed room to ensure a quiet working atmosphere
- Quick and easy assembly and disassembly

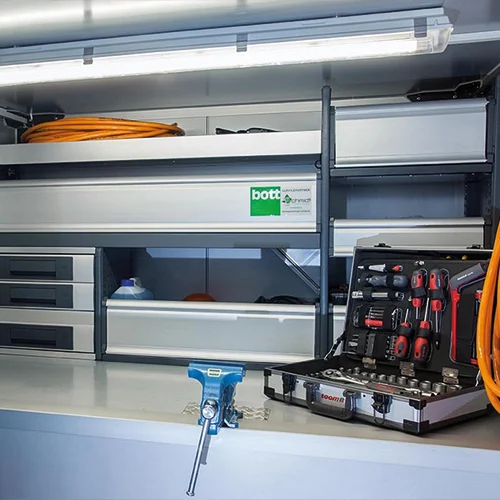

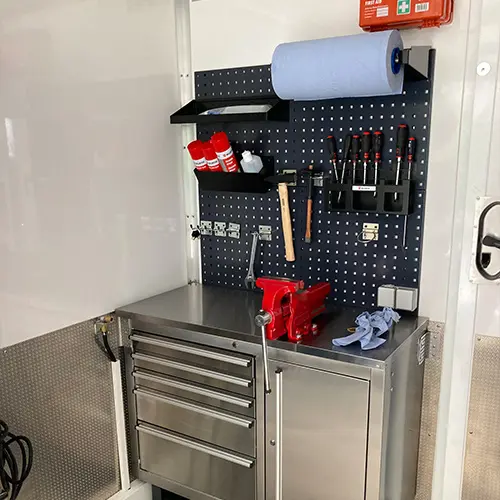

- The basic equipment also includes a functional workbench at working height including storage options and a dust extraction hood installed in the vehicle
Special features
- The system can be used for manhole rehabilitation, for the wet spraying process, the injection process, for pressure grouting and for coating accessible sewers
- Reproducible refurbishment results thanks to full automation and automatic logging of refurbishment data, ensuring consistent quality
- Approx. 10 shafts per day possible, depending on conditions!
- Highest safety level as no entry into the shaft necessary

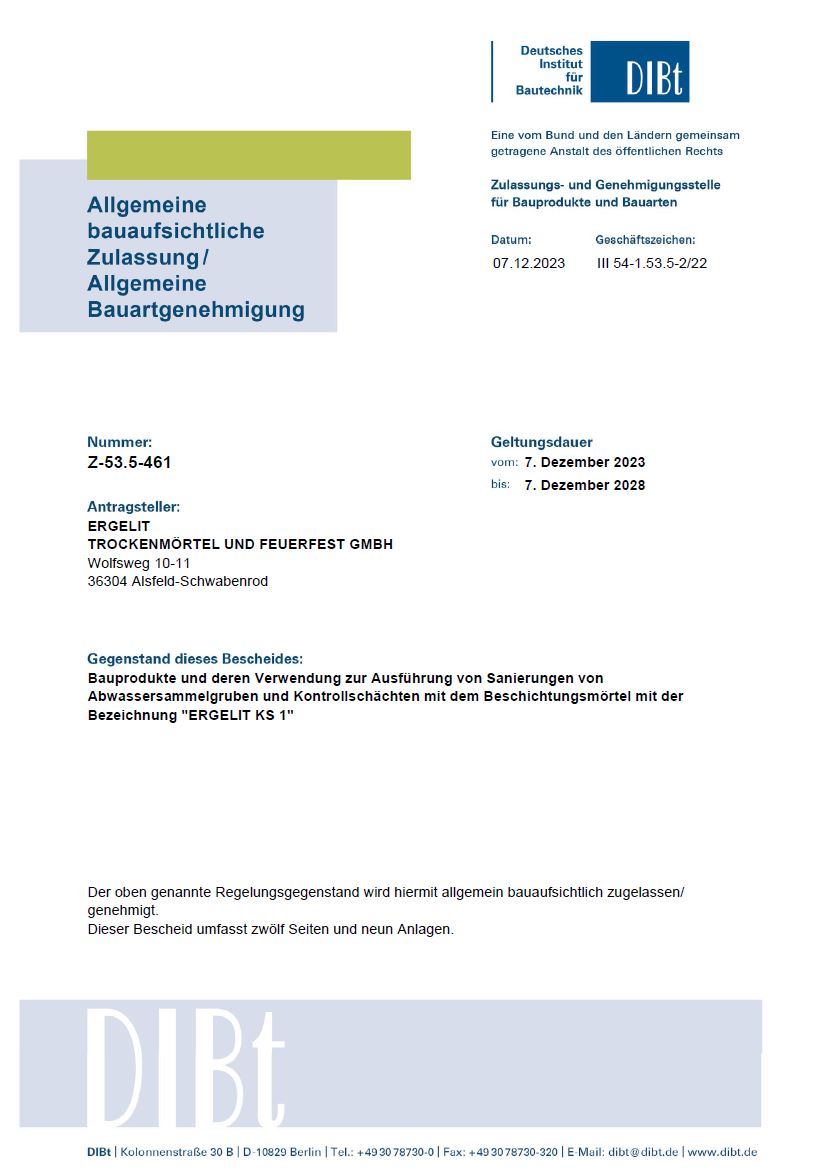

- DIBt-certified manhole coating process (DIBt approval no. Z-53.5-461)
- System for cleaning with high-pressure water TSSR® included -can also be optionally equipped with HDS-Jet® water-solid jetting unit
- Available in various expansion variants for professional use; truck, panel van, trailer or as a self-assembly unit
Application
- Automated renovation of round and square manholes from DN500 - DN4500
- Renovation of various structures with different damage patterns possible as different ERGELIT WW mortars are available depending on the type of damage
- Professional substrate preparation using either the TSSR® water pressure unit or HDS Jet® sandblasting
- Carrying out injections of wastewater structures
- Coating of wastewater structures using the wet spray process
- Spinning or coating of wastewater pipes using the horizontal spinning process from DN800 - DN4500
- Shaft walls over 25 m deep can also be coated with any realistic layer thickness
- Pressure grouting of masonry shafts and ducts
