ERGELIT-KS1
ERGELIT-KS1
Coating mortar
Art. No.: HTD-20000
All-rounder WW mortar for almost all areas: Masonry mortar, joint mortar, coating mortar, laying mortar and as repair mortar
Further properties
With the ERGELIT-KS1 WW mortar, you have the ultimate all-rounder for municipal wastewater at your fingertips, which is the ideal choice for your construction projects thanks to its versatile properties. Here are some of the special features that make ERGELIT-KS1 stand out:
Versatile application possibilities: Regardless of whether you prefer manual coating, the wet spray process or the centrifugal process (KS-ASS), ERGELIT-KS1 can be used in all these processes with consistent quality.
Tested quality: ERGELIT-KS1 has DIBT approval and has been tested in accordance with DIN19573 XWW3-B2. This means that you can rely on the reliability and safety of this product and do not have to make any compromises.
Fast water resistance: Time is money, and with ERGELIT-KS1 you save both. After just 2 hours at an average temperature of 20°C, ERGELIT-KS1 is ready for water loading. You can speed up your work process and make the construction site more efficient.

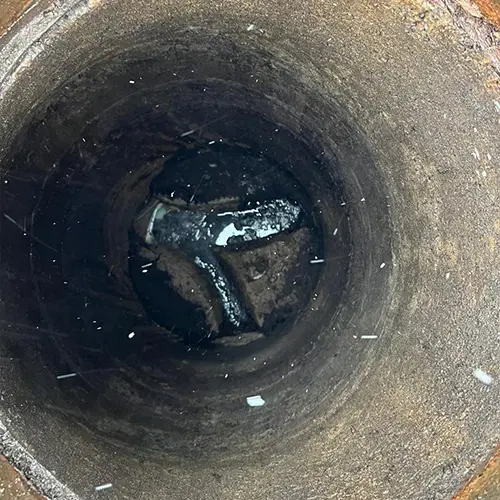

Especially suitable for wastewater manholes: When it comes to sewer manholes with municipal wastewater, ERGELIT-KS1 is the perfect choice. Thanks to its properties, ERGELIT-KS1 is ideal for this specific application and ensures lasting corrosion resistance and is 100% watertight against infiltration and exfiltration.

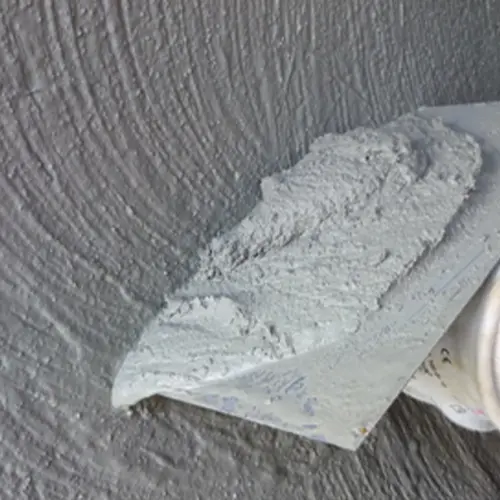

High-quality layer thicknesses: With ERGELIT-KS1, you can apply generous layer thicknesses of up to 3 cm in a single trowel stroke. This exceptional feature allows you to tackle demanding projects efficiently and save time.
The all-rounder for all areas: ERGELIT-KS1 is the true all-rounder in the field of WW mortars. Whether you need masonry mortar, joint mortar, coating mortar, laying mortar or repair mortar, ERGELIT-KS1 is the ideal solution. With this versatile product, you have the perfect solution for almost every area of application.
- Grain size 1 mm
- Consistency: plastic to stiff-plastic
- Highly alkaline
- Very good adhesive tensile strength (≥ 2 N/mm², depending on the substrate)
- High adhesive strength = very high layer thicknesses possible
- Shrink and shrinkage-free in the pipe
- Thixotrope
- Rebound approx. 3 % under good spraying conditions in the wet spraying process
- Resistant to very strong sulphate attack
- Permanently suitable as a coating system in the municipal wastewater sector up to pH ≥3.5 - 12, for concrete in exposure class XWW3 - B2 in accordance with DIN19573
- No entry drive
Special features
- Is perfectly suited for wastewater structures with industrial wastewater (highly acid-resistant)
- Has DIBT approval and is tested in accordance with DIN19573 XWW3-B2
- Is water-resistant after just 2 hours (at 20°)
- Can be applied by hand coating, wet spraying and the centrifugal process (KS-ASS)
- No additional bonding bridge is required
- Extremely high adhesive strength
Application

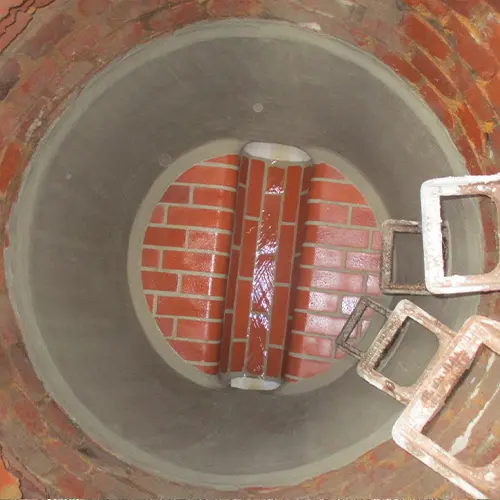

- Coating of concrete and masonry shafts, sewers and storage tanks
- Suitable for the wet spraying process or the KS-ASS coating system
- Base renovation of sewer pipes
- Grout for vitrified tiles and masonry
- Laying mortar for clinker tiles
- Can also be mixed and used as a bonding bridge
- Can be applied in very thick layers of up to 3 cm in one trowel stroke and, under good conditions, also in the ceiling area
- Reprofiling of break-outs and defects in shafts, sewers and storage tanks, as well as surface leveling in masonry shafts
- Production of coving and berms
- Creation of a joint restoration
- Sealing against pressing groundwater
- Pumpable up to 100 m
- Can be used in drinking water protection zones
- according to general building authority approval: Z-53.5-461 Coating mortar "ERGELlT-KS 1" for the renovation of wastewater collection pits and inspection chambers using the KS-ASS method
