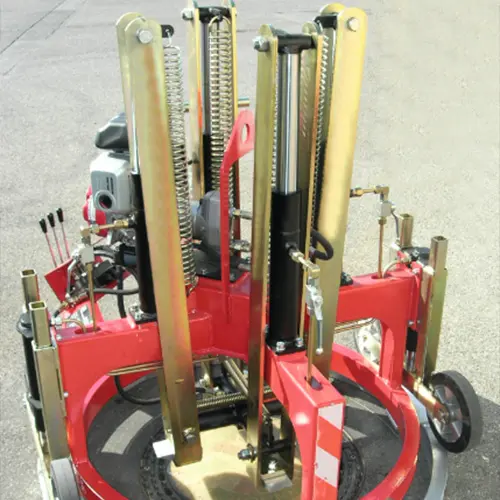

Shaft frame lifter SRH07
Art. No.: HTD-36000
Motorized hydraulic manhole frame lifter for manhole covers with an outer diameter of 950 mm and an inner diameter of up to 800 mm
Further properties
The HT-SHR07 is used for shaft frame adjustment.
Unlike the hand-hydraulic SRH03, the motor-hydraulic 4-arm jack is used here. The HT-SRH07 is just as easy to handle and, with its central hydraulic unit with individually lockable lifting cylinders, enables precise and energy-saving adjustment work.
Made in Germany guarantees robust and reliable operation. A good supply of spare parts ensures a long service life.
A reliable machine for professional daily and long-term use.
- Lifting height: 290 mm (special design: lowering depth can be extended by 100 mm)
- Engine type: Air-cooled 4-stroke CHC gasoline engine
- Maximum power: 2.2 kW (3 hp) / 3,600 min -1
- Dimensions: 1110/1220/1270 mm
- Inner diameter: 800 mm
- Weight: approx. 360 kg
- Made in Germany = robust and reliable function guaranteed
- Extensive range of accessories available for shaft frame adjustment
- Effortless working
- Easy handling
Special features
- Hand-operated hydraulic 4-arm lifter is easy to handle
- Separately lockable lifting cylinder = effort-saving and precise execution of adjustment work
- Lifting capacity: 4 x 12 t (total: 48 t)
Application
- Regulation work and renovation of sagging or protruding shaft frames
- For regular work on a small to medium scale
- Suitable for easy lifting of the manhole frame to street level or for complete lifting out
