TSSR®
Art. No.: HTD-16500
High-pressure water jets for underground preparation of manhole structures DN 500 - DN 4500
Further properties
Our TSSR® high-pressure water jets extend the KS-ASS® package for professional substrate pre-treatment.
With more than 20 years of experience, we can promise that this equipment will enable you to clean manhole walls faster and more efficiently than ever before - for a professional and perfect result.
Professional substrate pre-treatment - the be-all and end-all, even for companies that still coat by hand
If you want to use this system independently and not in conjunction with our KS-ASS® manhole coating system, a compact system including control unit is also available. This system is particularly suitable for companies that are already familiar with the manual coating of manholes but do not yet have a professional system for substrate pre-treatment.
Correct and thorough pre-treatment of the substrate ensures lasting adhesion of the coating and provides the basis for a professional restoration result.
- Operating pressure up to 400 bar
- Water requirement: 24 l/min
- Power connection: 24 V
- Waterproof control motor
- Infinitely adjustable from 60 - 120 cm
- Extendable up to 450 cm
- The device rotates around its own axis and also has rotating nozzles
- Efficient and fully automatic cleaning in conjunction with KS-ASS®
Special features
- Self-contained shaft cleaning system for professional substrate pre-treatment before coating
- Effective roughening and removal of concrete substrates and deposits in manholes
- Highest safety level: no shaft access necessary
- Automatically rotating 2-nozzle system with 400 bar high water pressure

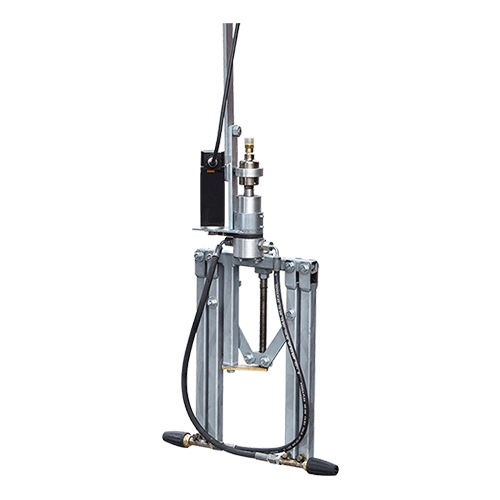

- Compact system with a mobile control unit, triple boom and high-pressure pump
- Expandable system for the KS-ASS® coating system

Application

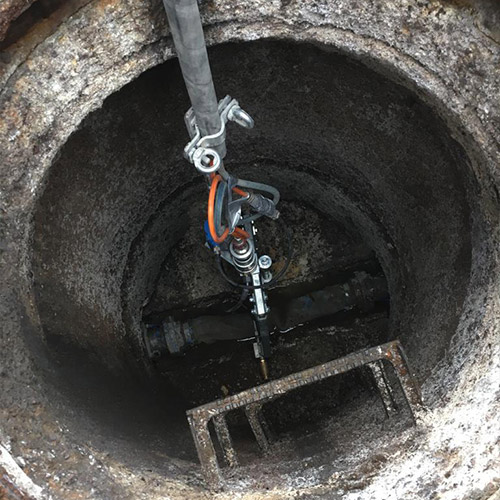

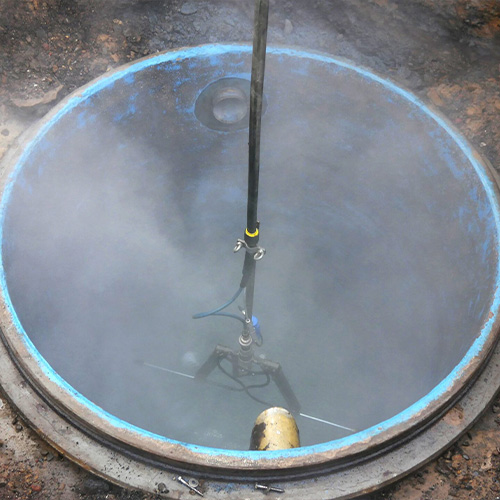

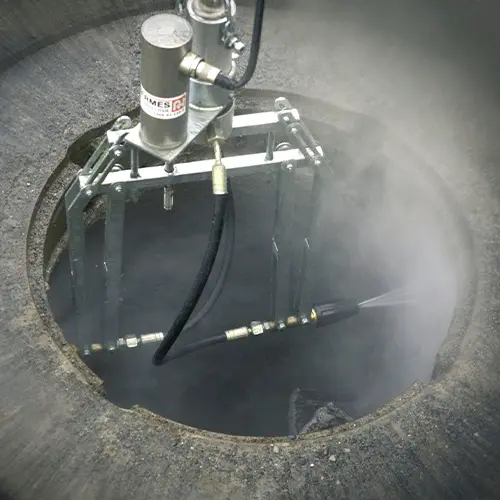

- Professional substrate pre-treatment of manholes in the DN range from DN 500-4500 using adjustable nozzle arms
- Suitable for both round and rectangular manhole structures with unlimited depth
- Effective removal of corrosion residues in manholes
- Removal of incrustations
- Removing loose parts
- To roughen the surface so that the WW mortar can adhere better
